Footswitch
2-Button Vintage Style (Reverb On/Off, Vibrato On/Off), P/N: 0994058000 (Included)
Included Accessories
Includes two-button vintage footswitch and fitted cover.

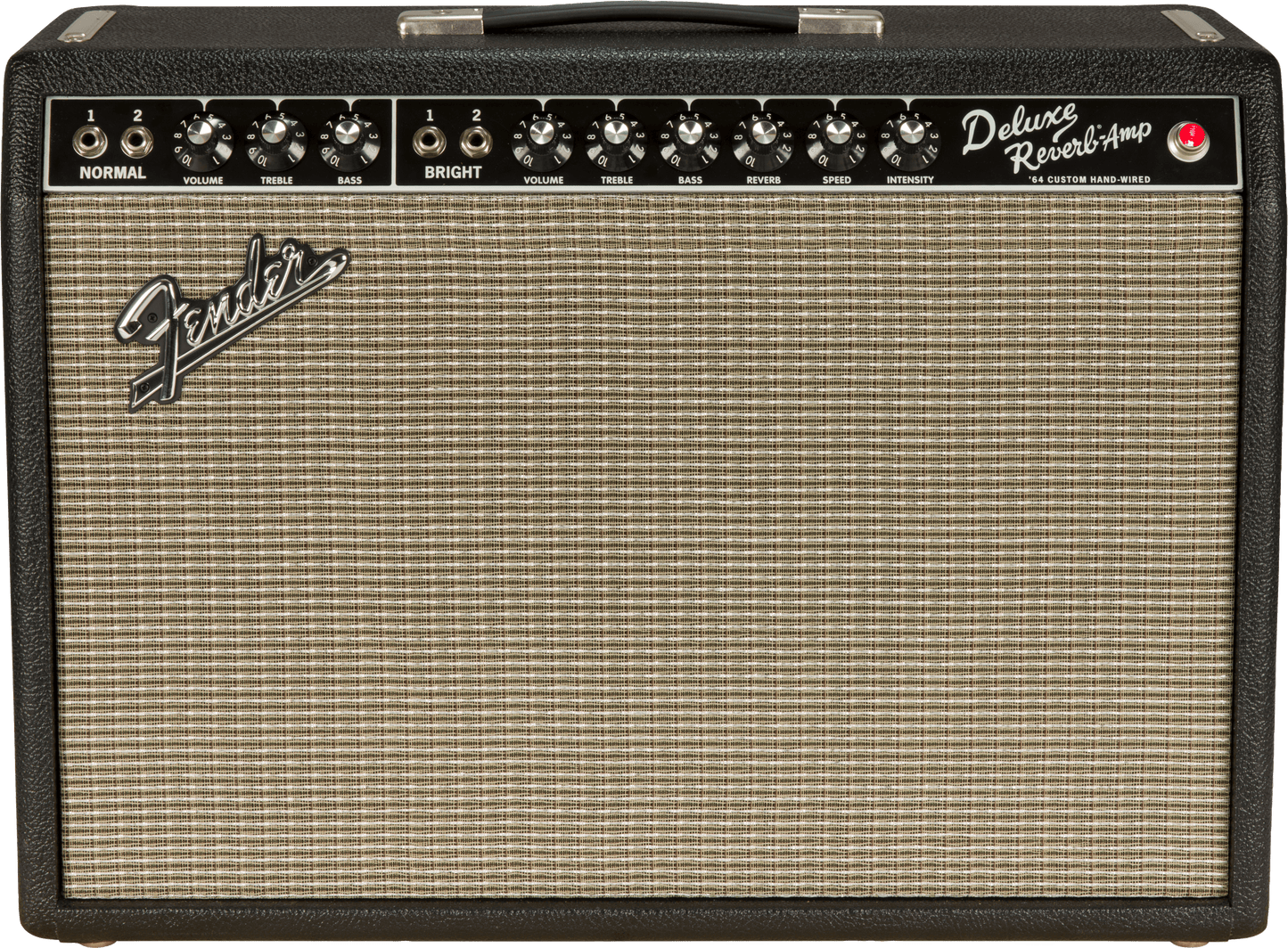

'64 Custom Deluxe Reverb®
Regular price
$5,599.00
Regular price
$5,599.00
$5,599.00
Sale price
Unit price
per
inc GST
'64 Custom Deluxe Reverb®
'64 Custom Deluxe Reverb®
Model #:
8180003000
Regular price
$5,599.00
Regular price
$5,599.00
$5,599.00
Sale price
Unit price
per
inc GST
- Hand-wired AB763 circuit with Bright and Normal channels; Fender Vintage Blue tone capacitors
- Tube-driven spring reverb and tremolo on both channels
- Four 12AX7 and two 12AT7 preamp tubes; 5AR4/GZ34 rectifier tube; matched pair of 6V6 output tubes
- 20 watts output power; 12" Jensen C-12Q speaker
- Solid pine cabinet with extra-heavy textured vinyl covering and lightly aged silver grille cloth
- Includes footswitch and amp cover
Couldn't load pickup availability
Details
Summary
Overview
Quintessential Fender Tone
Played on countless hit recordings, the mid-'60s Deluxe Reverb is a timeless Fender classic and one of the most indispensable workhorse guitar amps ever made. Moderately powered and producing a full, snappy and crystalline tone, the pedal-friendly '64 Custom Deluxe Reverb carries on that legacy with incredible vintage-style tones, thanks to its modified all-tube hand-wired AB763 circuitry. Featuring Bright and Normal channels, tube-driven spring reverb and tremolo on both channels, and 20 watts of output power, this is the go-to amp for warm, clean tones and moderate breakup.
Overview
Features
- Hand-wired AB763 circuit with Bright and Normal channels; Fender Vintage Blue tone capacitors
- Tube-driven spring reverb and tremolo on both channels
- Four 12AX7 and two 12AT7 preamp tubes; 5AR4/GZ34 rectifier tube; matched pair of 6V6 output tubes
- 20 watts output power; 12" Jensen C-12Q speaker
- Solid pine cabinet with extra-heavy textured vinyl covering and lightly aged silver grille cloth
- Includes footswitch and amp cover
Specs
Accessories
Electronics
Channels
Two - (Normal and Bright)
Connection Type
1/4"
Control Panel
Normal Channel: Volume, Treble, Bass; Bright Channel: Volume, Treble, Bass, Reverb; Vibrato: Speed, Intensity
Controls
Normal Channel: Volume, Treble, Bass; Bright Channel: Volume, Treble, Bass, Reverb; Vibrato: Speed, Intensity
Effects
Reverb, Tremolo
Inputs
Four - (1/4", Two Bright and Two Normal)
Wattage
20 Watts
General
Amplifier Type
Tube
Color
Black and Silver
Platform
Pro Tube
Product Name
'64 Custom Deluxe Reverb®, 240V AUS
Series
American Hand-Wired
Hardware
Amplifier Covering
Black Textured Vinyl
Amplifier Jewel
Red Jewel
Cabinet Material
Lightweight Pine
Control Knobs
Skirted Amp Knobs
Front Panel
Black
Grille Cloth
Silver
Handle
Molded Plastic Strap with Nickel-Plated Caps
Speaker Jack
1/4"
Measurements
Power Tubes
2 x 6V6
Product Depth
9.5" (24.13 cm)
Product Height
17.5" (44.5 cm)
Product Width
24.5" (62.2 cm)
Miscellaneous
Commodity Code
8518.40.2000
Power Cable
Non-IEC
Style
6V6 Tubes
Speakers
Speaker Wattage
35 Watts
Speakers
One - 12" Jensen® C12Q
Total Impedance
8 ohms minimum
Tubes
Power Tubes
2 x 6V6
Preamp Tubes
3 x 12AX7, 2 x 12AT7
Rectifier
Tube (1 x 5AR4)
Highlights
Hand-Wired Circuitry
This amplifier's circuitry is all hand-wired by an actual person at a workbench, just like the legendary Fender guitar amps of the 1950s and '60s that defined the essence of pure tone and power.
Classic Fender Reverb and Tremolo
In a slight departure from the design of the original model, this amp offers luscious spring reverb and rich, pulsating tube-biased tremolo effects on both channels. It's capable of creating incredible ambient sounds ranging from subtle to stupendous with the distinctly pure tone only a Fender amp can offer.
Vintage Design
Hearkening back to classic Fender amp design of the '50s and '60s, this amp's lightweight solid pine construction makes for a more resonant and "musical" cabinet. When combined with the Jensen C12Q speaker, this amp sings with the same vintage chime and sparkle that made the originals so revered.
