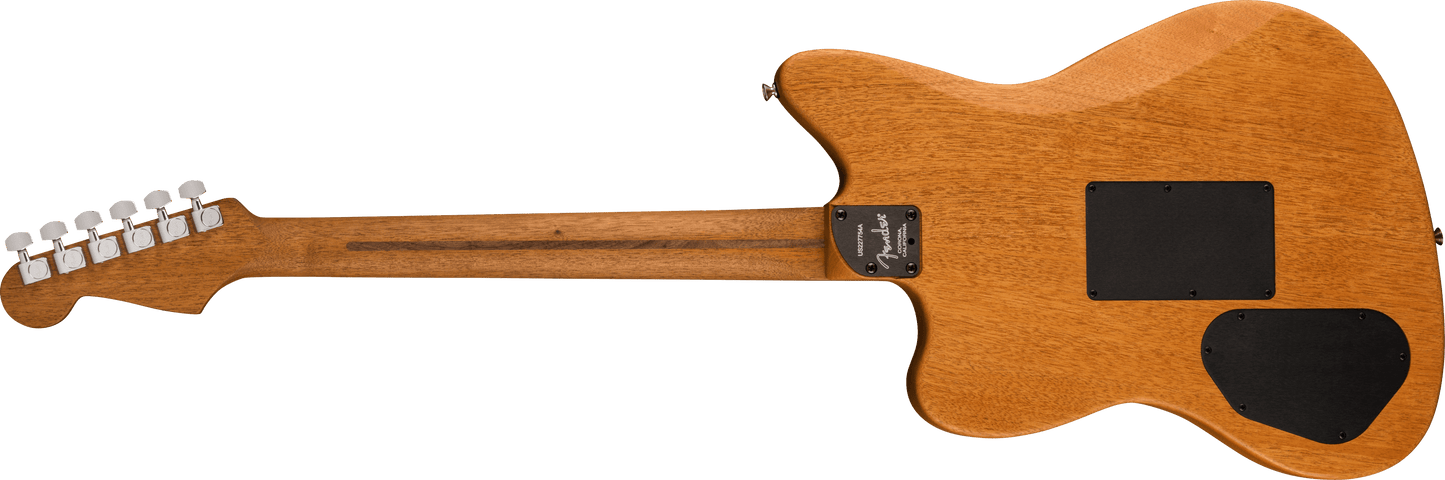

American Acoustasonic® Jazzmaster® All-Mahogany
American Acoustasonic® Jazzmaster® All-Mahogany
Model #:
0972033122
Regular price
$3,199.00
Regular price
$3,199.00
$3,199.00
Sale price
Unit price
per
inc. VAT*
- Three pickup systems: New Fender Acoustasonic Shawbucker; Fishman Under-Saddle Transducer; Fishman Acoustasonic Enhancer
- Cutting-edge acoustic-electric guitar
- Acoustic Engine delivers a new and unique set of acoustic and electric voices
- Blend Knob selects and blends voices
- Patented Stringed Instrument Resonance System (SIRS)
- Integrated forearm and back contour, and mahogany neck
Couldn't load pickup availability
Details
Summary
Overview
Never Stop Looking for New Ways to Play
The American Acoustasonic® Jazzmaster® All-Mahogany offers players even more tonal possibilities to the seemingly endless sonic range of our groundbreaking Acoustasonic® platform. Equipped with the revolutionary Fender and Fishman®-designed Acoustic Engine and constructed entirely of mahogany, this powerful guitar goes from acoustic shape-shifting to electric rhythm tones, all with balanced highs, focused mid-range, and pronounced bass response. Continuing our legacy of purposeful innovation, this guitar represents a new alternative for artist expression from the studio to the stage.
Overview
Features
- Three pickup systems: New Fender Acoustasonic Shawbucker; Fishman Under-Saddle Transducer; Fishman Acoustasonic Enhancer
- Cutting-edge acoustic-electric guitar
- Acoustic Engine delivers a new and unique set of acoustic and electric voices
- Blend Knob selects and blends voices
- Patented Stringed Instrument Resonance System (SIRS)
- Integrated forearm and back contour, and mahogany neck
Specs
Accessories
Body
Body
Mahogany
Body Back
Mahogany
Body Finish
Polyester Satin Matte
Body Material
Mahogany
Body Shape
Modified Jazzmaster®
Body Sides
Mahogany
Body Style
Acoustasonic
Body Top
Solid Mahogany
Bracing
Transverse
Cutaway
Yes
Purfling
Tortoiseshell
Rosette
Tortoiseshell
Sound Hole
WaterFall Sound Port
Electronics
Controls
Master Volume, "Blend" Knob, 5-Way Switch
Special Electronics
3-pickup configuration: Under-Saddle Piezo/Internal Body Sensor/Acoustasonic Shawbucker Magnetic
General
Color
Natural
Orientation
Right-Hand
Product Name
American Acoustasonic® Jazzmaster® All-Mahogany, Ebony Fingerboard, Natural
Series
American Acoustasonic®
Hardware
Bridge
Modern Asymmetrical
Bridge Pins
Graph Tech® TUSQ®
Hardware Finish
Chrome
Pickguard
None
Strap Buttons
American Series
Strings
Fender® Dura-Tone® 860CL Coated Phosphor Bronze (.011-.052 Gauges), PN 0730860405
Tuning Machines
Fender® Standard Cast/Sealed Staggered
Measurements
Body Depth
1.75" (44.45 mm)
Fret Size
Narrow Tall
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9207.90.0040
Neck
Fingerboard Material
Ebony
Fingerboard Radius
12" (305 mm)
Neck Finish
Satin Urethane
Neck Material
Mahogany
Neck Shape
Modern "Deep C"
Number of Frets
22
Nut Material
Graph Tech® TUSQ®
Nut Width
1.6875" (42.86 mm)
Position Inlays
White Dot
String Nut
Graph Tech® TUSQ®
Truss Rod
Bi-Flex™
Truss Rod Nut
1/8" American Series
Specs
Accessories
Truss Rod Wrench
1/8" Hex (Allen)
Body
Body
Mahogany
Body Back
Mahogany
Body Finish
Polyester Satin Matte
Body Material
Mahogany
Body Shape
Modified Jazzmaster®
Body Sides
Mahogany
Body Style
Acoustasonic
Body Top
Solid Mahogany
Bracing
Transverse
Cutaway
Yes
Purfling
Tortoiseshell
Rosette
Tortoiseshell
Sound Hole
WaterFall Sound Port
Electronics
Controls
Master Volume, "Blend" Knob, 5-Way Switch
Special Electronics
3-pickup configuration: Under-Saddle Piezo/Internal Body Sensor/Acoustasonic Shawbucker Magnetic
General
Color
Bourbon Burst
Orientation
Right-Hand
Product Name
American Acoustasonic® Jazzmaster® All-Mahogany, Ebony Fingerboard, Bourbon Burst
Series
American Acoustasonic®
Hardware
Bridge
Modern Asymmetrical
Bridge Pins
Graph Tech® TUSQ®
Hardware Finish
Chrome
Pickguard
None
Strap Buttons
American Series
Strings
Fender® Dura-Tone® 860CL Coated Phosphor Bronze (.011-.052 Gauges), PN 0730860405
Tuning Machines
Fender® Standard Cast/Sealed Staggered
Measurements
Body Depth
1.75" (44.45 mm)
Fret Size
Narrow Tall
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9207.90.0040
Neck
Fingerboard Material
Ebony
Fingerboard Radius
12" (305 mm)
Neck Finish
Satin Urethane
Neck Material
Mahogany
Neck Shape
Modern "Deep C"
Number of Frets
22
Nut Material
Graph Tech® TUSQ®
Nut Width
1.6875" (42.86 mm)
Position Inlays
White Dot
String Nut
Graph Tech® TUSQ®
Truss Rod
Bi-Flex™
Truss Rod Nut
1/8" American Series
Highlights
ACOUSTIC BODY
The hollow Jazzmaster-inspired body is the largest of the three Acoustasonic models, producing a powerful acoustic tone with a boosted low end.
ACOUSTIC ENGINE
The Fender and Fishman-designed Acoustic Engine powers the Acoustasonic Jazzmaster and delivers a new and unique collection of acoustic and electric voices.
FENDER ACOUSTASONIC SHAWBUCKER
Designed and voiced specifically for the Jazzmaster, the Fender Acoustasonic Shawbucker provides an aggressive humbucking sound that can be played solo or blended with an acoustic voice for unique tonal characteristics.
MAHOGANY JAZZMASTER NECK
The mahogany Jazzmaster neck with ebony fingerboard offers a familiar playing feel and adds warmth to the guitar’s tone.
FENDER FIRSTS
The patented Stringed Instrument Resonance System (SIRS), inlaid top and modern electronics were created expressly for this instrument.
MADE IN CA
This state-of-the-art guitar is crafted in Corona, CA, at the same factory as our iconic electric instruments.
