Color
Natural
Orientation
Right-Hand
Product Name

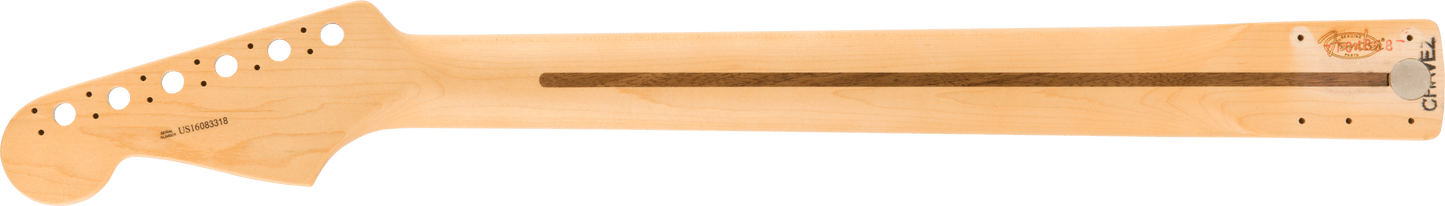

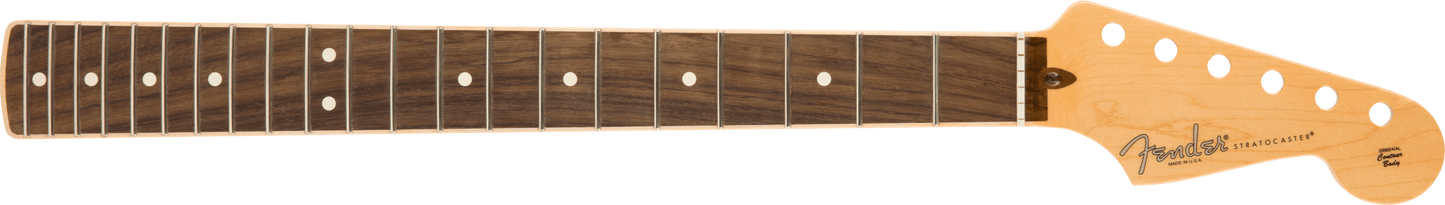

American Channel Bound Stratocaster® Neck, 21 Med Jumbo Frets, Rosewood
Series
Necks
American Channel Bound Stratocaster® Neck, 21 Medium Jumbo Frets - Rosewood
Regular price
$1,299.00
Regular price
$1,299.00
$1,299.00
Sale price
Unit price
per
inc GST
American Channel Bound Stratocaster® Neck, 21 Medium Jumbo Frets - Rosewood
American Channel Bound Stratocaster® Neck, 21 Medium Jumbo Frets - Rosewood
Regular price
$1,299.00
Regular price
$1,299.00
$1,299.00
Sale price
Unit price
per
inc GST
Couldn't load pickup availability
Details
Summary
Overview
Add A Touch Of Elegance
Crafted in the same facility as our U.S.-made instruments, the Channel-Bound Stratocaster® Neck combines a uniquely elegant aesthetic with a distinctively smooth fret-hand feel. The "channel-bound" fingerboard is a unique Fender innovation whereby the fingerboard is directly inlaid into the neck, eliminating the side seams while combining slick style with astounding fret-hand feel. The 9.5"-14" compound-radius rosewood fingerboard is more rounded towards the nut for easy chording, while the flatter radius in the upper register allows wide bends without fretting out. The comfortably rounded fingerboard edges and "Modern C"-shaped profile are ideal for any playing style.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- Maple Stratocaster neck with walnut stripe
- Channel-bound 9.5"-14" compound-radius fingerboard
- 21 medium jumbo frets; vintage ivory inlays
- Hand-rubbed polyurethane finish with gloss headstock
- Pre-slotted synthetic bone nut; Bi-Flex™ truss rod
- Six two-guide-pin tuning machine holes; requires 4-bolt neck plate
General
Hardware
Tuner Mounting Config
Dual Guide Pin
Measurements
Fret Size
Medium Jumbo
Fret Wire Dimensions
0.103" (H) x 0.046" (W)
Headstock Thickness
.540" (13.71 mm)
Peg Hole Diameter
.404” (10.26 mm)
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9209.94.8000
Neck
Fingerboard Material
Rosewood
Fingerboard Radius
9.5" to 14" Compound Radius (241 mm-355.6 mm)
Neck Finish
Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
Modern "C"
Neck Thickness
1st Fret - .820" (20.82 mm), 12th Fret - .870" (22.09 mm)
Number of Frets
21
Nut Material
Synthetic Bone
Nut Width
1.6875" (42.86 mm)
Position Inlays
Vintage Ivory Dots
String Nut
Synthetic Bone
Truss Rod
Bi-Flex™
Truss Rod Nut
1/8" Hex Adjustment
