Case/Gig Bag
Deluxe Hardshell
Included Accessories
Deluxe Hardshell Case, Strap and Certificate of Authenticity.
American Custom Stratocaster® NOS - Rosewood
American Custom Stratocaster® NOS - Rosewood
American Custom Stratocaster® NOS - Rosewood
Details
Summary
Overview
With striking finishes and contemporary features, the American Custom Stratocaster® NOS is not only beautiful, but it represents the best in player-friendly specifications and Fender style. Meticulously crafted with a two-piece select ash body, 2A roasted birdseye maple neck and flat-laminated rosewood fingerboard—finished in NOS lacquer—this Strat® is the quintessential modern-facing Custom Shop instrument.
From Custom Shop hand-wound Dual-Mag pickups to Fat ‘50s 1/2 Blender Strat® wiring and Custom Shop vintage synchronized tremolo, every detail of this guitar was chosen to highlight its tonal qualities and enhance its performance. Vintage Blonde and Three-Color Sunburst finishes are paired with a black anodized aluminum pickguards and gold hardware to create breathtaking instruments with timeless aesthetics.
Other premium features include '59-style "D" back-shape, contoured heel, 9.5" to 12" compound radius, 21 jumbo (6100) frets, 5-way switch, vintage-style tuning machines with white pearloid buttons, bone nut, wing string tree with tall metal spacer, deluxe hardshell case, strap and certificate of authenticity.
Accessories
Body
Body
2-Piece Select Ash
Body Finish
WLS Undercoat
Body Material
2-Piece Select Ash
Body Shape
Stratocaster®
Electronics
Bridge Pickup
Custom Shop Hand-Wound Dual-Mag II Strat®
Controls
Master Volume, Master Tone, 1/2 Blend
Middle Pickup
Custom Shop Hand-Wound RWRP Dual-Mag II Strat®
Neck Pickup
Custom Shop Hand-Wound Dual-Mag II Strat®
Pickup Configuration
SSS
Potentiometers
250K 10% Taper Split
Switching
5-Position Blade: Position 1. Bridge with Neck Blend, Position 2. Bridge and Middle with Neck Blend, Position 3. Middle, Position 4. Neck and Middle, Position 5. Neck
General
Color

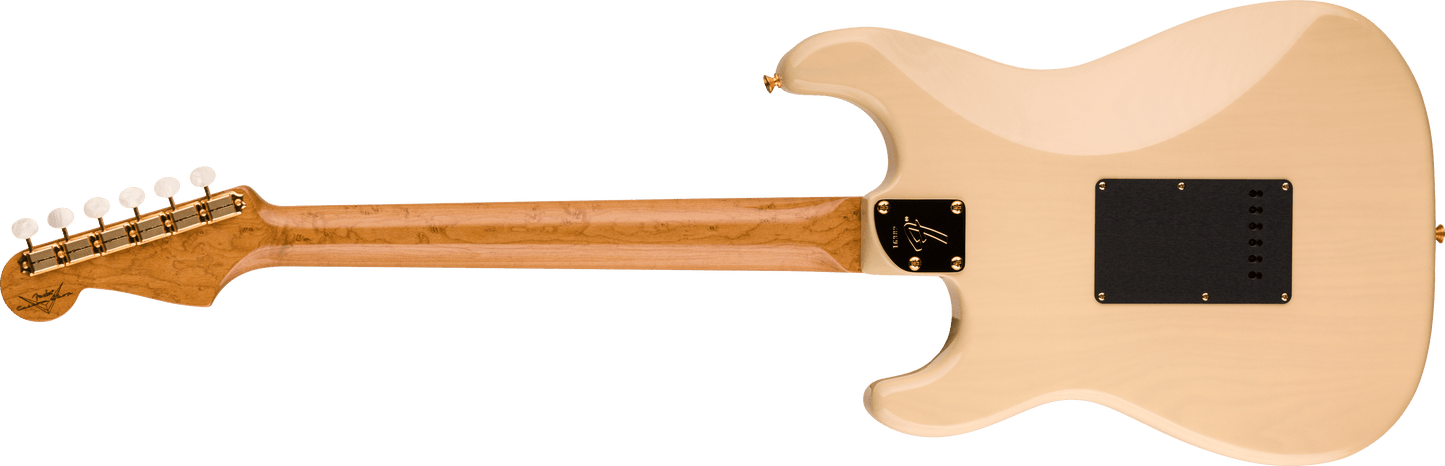

Vintage Blonde
Orientation
Right-Hand
Product Name
American Custom Stratocaster® NOS, 3A Rosewood Fingerboard, Vintage Blonde
Series
American Custom
Hardware
Bridge
6-Saddle Vintage-Style Synchronized Tremolo with Bent Steel Saddles
Control Knobs
Vintage White Plastic
Hardware Finish
Gold
Neck Plate
4-Bolt "Limited Edition" Engraved with Custom Shop Logo and Serial Number
Pickguard
1-Ply Black Anodized Aluminum
String Trees
American Vintage '59-'64
Strings
Nickel Plated Steel (.010-.046 Gauges)
Switch Tip
Vintage White
Tremolo Arm
Vintage-Style Tremolo Arm
Tuning Machines
Vintage-Style with Fender® Logo, White Pearl Buttons
Measurements
Fret Size
Jumbo (6100)
Headstock Thickness
0.570"
Scale Length
25.5" (648 mm)
Neck
Fingerboard Material
3A Rosewood
Fingerboard Radius
9.5" to 12" Compound Radius
Headstock
Stratocaster®
Neck Butt Width
2.200"
Neck Finish
Nitrocellulose Lacquer
Neck Material
2A Roasted Birdseye Maple
Neck Shape
1959 "D"
Neck Thickness
.800"
Neck Thickness 12th Fret
.980"
Number of Frets
21
Nut Material
Bone
Nut Width
1.650" (42 mm)
Position Inlays
Mother of Pearl Dot - 0.25"
String Nut
Bone
Truss Rod
Early '60s
Accessories
Case/Gig Bag
Deluxe Hardshell
Included Accessories
Deluxe Hardshell Case, Strap and Certificate of Authenticity.
Body
Body
2-Piece Select Ash
Body Finish
WLS Undercoat
Body Material
2-Piece Select Ash
Body Shape
Stratocaster®
Electronics
Bridge Pickup
Custom Shop Hand-Wound Dual-Mag II Strat®
Controls
Master Volume, Master Tone, 1/2 Blend
Middle Pickup
Custom Shop Hand-Wound RWRP Dual-Mag II Strat®
Neck Pickup
Custom Shop Hand-Wound Dual-Mag II Strat®
Pickup Configuration
SSS
Potentiometers
250K 10% Taper Split
Switching
5-Position Blade: Position 1. Bridge with Neck Blend, Position 2. Bridge and Middle with Neck Blend, Position 3. Middle, Position 4. Neck and Middle, Position 5. Neck
General
Color

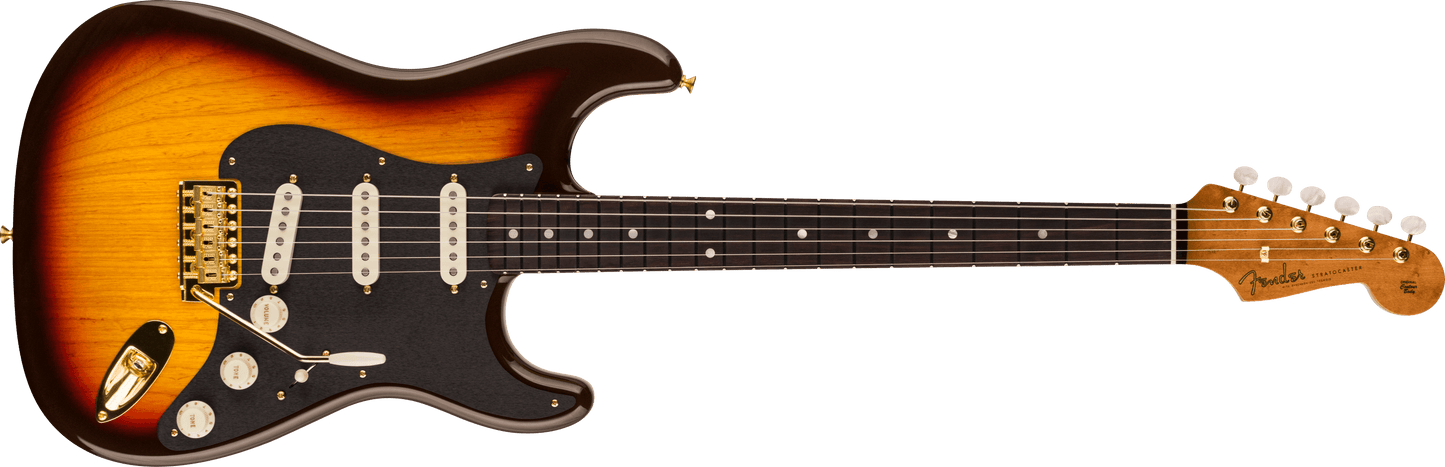

3-Color Sunburst
Orientation
Right-Hand
Product Name
American Custom Stratocaster® NOS, 3A Rosewood Fingerboard, 3-Color Sunburst
Series
American Custom
Hardware
Bridge
6-Saddle Vintage-Style Synchronized Tremolo with Bent Steel Saddles
Control Knobs
Vintage White Plastic
Hardware Finish
Gold
Neck Plate
4-Bolt "Limited Edition" Engraved with Custom Shop Logo and Serial Number
Pickguard
1-Ply Black Anodized Aluminum
String Trees
American Vintage '59-'64
Strings
Nickel Plated Steel (.010-.046 Gauges)
Switch Tip
Vintage White
Tremolo Arm
Vintage-Style Tremolo Arm
Tuning Machines
Vintage-Style with Fender® Logo, White Pearl Buttons
Measurements
Fret Size
Jumbo (6100)
Headstock Thickness
0.570"
Scale Length
25.5" (648 mm)
Neck
Fingerboard Material
3A Rosewood
Fingerboard Radius
9.5" to 12" Compound Radius
Headstock
Stratocaster®
Neck Butt Width
2.200"
Neck Finish
Nitrocellulose Lacquer
Neck Material
2A Roasted Birdseye Maple
Neck Shape
1959 "D"
Neck Thickness
.800"
Neck Thickness 12th Fret
.980"
Number of Frets
21
Nut Material
Bone
Nut Width
1.650" (42 mm)
Position Inlays
Mother of Pearl Dot - 0.25"
String Nut
Bone
Truss Rod
Early '60s
