Color
Natural
Orientation
Right-Hand
Product Name
American Professional II Scalloped Stratocaster Neck, 22 Narrow Tall Frets, 9.5" Radius, Rosewood
Series
Fender® Parts

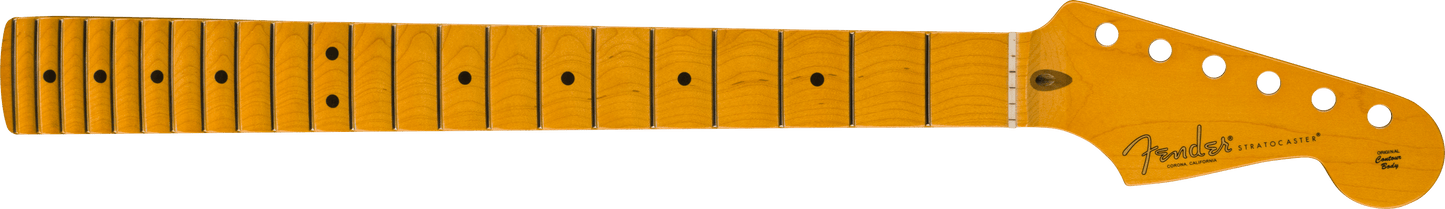

American Professional II Stratocaster® Neck with Scalloped Fingerboard
Regular price
$1,549.00
Regular price
$1,549.00
$1,549.00
Sale price
Unit price
per
inc GST
American Professional II Stratocaster® Neck with Scalloped Fingerboard
American Professional II Stratocaster® Neck with Scalloped Fingerboard
Regular price
$1,549.00
Regular price
$1,549.00
$1,549.00
Sale price
Unit price
per
inc GST
Couldn't load pickup availability
Details
Summary
Overview
Iconic players from around the globe have always known the secret to Stratocaster shredding…the scalloped fingerboard. A scalloped fingerboard allows your fingers to make contact only with the strings and not with the wood of the fingerboard itself. This allows a lighter touch, greater speed and improved grip on the strings, facilitating effortless string bending, pull offs and tapping technique.
Crafted at our Corona, Calif. manufacturing facility, this genuine Fender American Pro II Scalloped Stratocaster guitar neck features a Deep "C"-shaped profile and 9.5"-radius maple or rosewood fingerboard with 22 narrow-tall frets.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- Stratocaster neck with scalloped fingerboard
- 9.5"-radius maple or rosewood fingerboard
- 22 narrow-tall frets
- Satin urethane "super natural" back finish with gloss headstock
- Pre-slotted bone nut
- Bi-Flex™ truss rod adjustment
General
Hardware
Tuner Mounting Config
Dual Guide Pin
Measurements
Fret Size
Narrow Tall
Fret Wire Dimensions
0.094" (H) x 0.054" (W)
Headstock Thickness
.540” (13.71 mm)
Peg Hole Diameter
.404” (10.26 mm)
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9209.94.8000
Neck
Fingerboard Material
Scalloped Rosewood
Fingerboard Radius
9.5" (241 mm)
Neck Binding
None
Neck Finish
“Super-Natural” Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
Deep "C"
Neck Thickness
1st Fret - .820" (20.82 mm), 12th Fret - .920" (22.86 mm)
Number of Frets
22
Nut Material
Bone
Nut Width
1.685" (42.8 mm)
Position Inlays
White Dot
Side Dots
White
String Nut
Bone
Truss Rod
Bi-Flex™
Truss Rod Nut
1/8" Hex Adjustment
General
Color
Natural
Orientation
Right-Hand
Product Name
American Professional II Scalloped Stratocaster Neck, 22 Narrow Tall Frets, 9.5" Radius, Maple
Series
Fender® Parts
Hardware
Tuner Mounting Config
Dual Guide Pin
Measurements
Fret Size
Narrow Tall
Fret Wire Dimensions
0.094" (H) x 0.054" (W)
Headstock Thickness
.540” (13.71 mm)
Peg Hole Diameter
.404” (10.26 mm)
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9209.94.8000
Neck
Fingerboard Material
Scalloped Maple
Fingerboard Radius
9.5" (241 mm)
Neck Binding
None
Neck Finish
“Super-Natural” Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
Deep "C"
Neck Thickness
1st Fret - .820" (20.82 mm), 12th Fret - .920" (22.86 mm)
Number of Frets
22
Nut Material
Bone
Nut Width
1.685" (42.8 mm)
Position Inlays
Black Dot
Side Dots
Black
String Nut
Bone
Truss Rod
Bi-Flex™
Truss Rod Nut
1/8" Hex Adjustment
