Color
Natural
Orientation
Right-Hand
Product Name

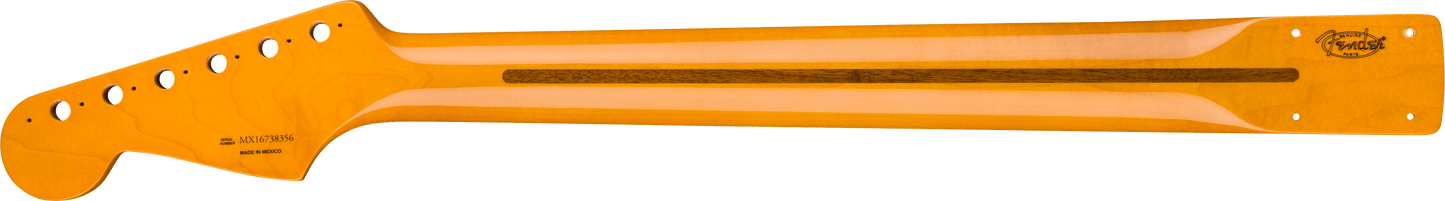

Classic Series '50s Stratocaster® Neck, Lacquer Finish, 21 Vintage Frets, Soft "V" Shape, Maple Fingerboard
Series
Necks
Classic Series '50s Stratocaster® Neck with Lacquer Finish, Soft "V" Shape - Maple Fingerboard
Regular price
$749.00
Regular price
$749.00
$749.00
Sale price
Unit price
per
inc. VAT*
Classic Series '50s Stratocaster® Neck with Lacquer Finish, Soft "V" Shape - Maple Fingerboard
Classic Series '50s Stratocaster® Neck with Lacquer Finish, Soft "V" Shape - Maple Fingerboard
Model #:
0990061921
Regular price
$749.00
Regular price
$749.00
$749.00
Sale price
Unit price
per
inc. VAT*
- Maple fingerboard with 7.25" radius
- "Soft V" neck profile
- 21 vintage-style frets
- Pre-slotted synthetic bone nut
- Lacquer finish
- Vintage-style truss rod adjustment
Couldn't load pickup availability
Details
Summary
Overview
Crafted at our Ensenada, Mexico manufacturing facility, this genuine vintage-style Fender Stratocaster" guitar neck features a comfortable "Soft V" profile and 7.25"-radius maple fingerboard with 21 vintage-style frets.
The synthetic bone nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing, and a lacquer finish offers a vintage feel. This replacement neck is the perfect way to give your Strat an authentically '50s feel.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- Maple fingerboard with 7.25" radius
- "Soft V" neck profile
- 21 vintage-style frets
- Pre-slotted synthetic bone nut
- Lacquer finish
- Vintage-style truss rod adjustment
Specs
General
Hardware
Tuner Mounting Config
Vintage-Style 2-Screw
Measurements
Fret Size
Vintage-Style
Fret Wire Dimensions
0.084" (H) x 0.039" (W)
Headstock Thickness
.540" (13.71 mm)
Peg Hole Diameter
.358” (9.09 mm)
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9209.94.8000
Style
Vintage-Style
Neck
Fingerboard Material
Maple
Fingerboard Radius
7.25" (184.1 mm)
Neck Finish
Gloss Nitrocellulose Lacquer
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
Soft "V"
Neck Thickness
1st Fret - .850" (21.59 mm), 12th Fret - .890" (22.6 mm)
Number of Frets
21
Nut Material
Synthetic Bone
Nut Width
1.650" (42 mm)
Position Inlays
Black Dot
String Nut
Synthetic Bone
Truss Rod
Vintage-Style Heel Adjust
Truss Rod Nut
Vintage-Style Slotted
