Color
Natural
Orientation
Right-Hand
Product Name

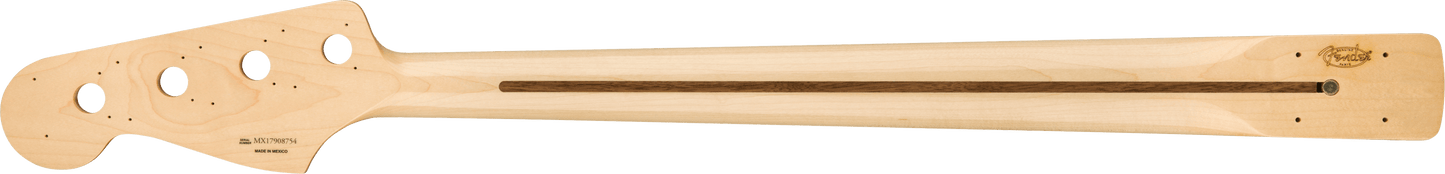

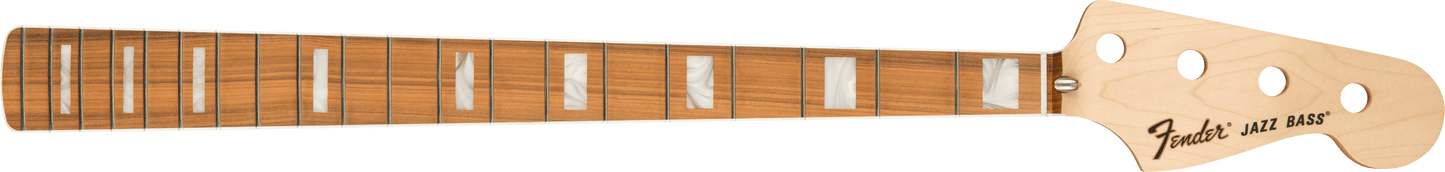

Classic Series 70's Jazz Bass® Neck, 20 Medium Jumbo Frets, Block Inlay, Pau Ferro
Series
Necks
Classic Series 70's Jazz Bass® Neck, 20 Medium Jumbo Frets, Block Inlay, Pau Ferro
Regular price
$899.00
Regular price
$899.00
$899.00
Sale price
Unit price
per
inc GST
Classic Series 70's Jazz Bass® Neck, 20 Medium Jumbo Frets, Block Inlay, Pau Ferro
Classic Series 70's Jazz Bass® Neck, 20 Medium Jumbo Frets, Block Inlay, Pau Ferro
Regular price
$899.00
Regular price
$899.00
$899.00
Sale price
Unit price
per
inc GST
Couldn't load pickup availability
Details
Summary
Overview
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- 7.25"-radius pau ferro fingerboard
- "C"-shaped neck profile
- 20 medium-jumbo frets; block inlays
- Pre-slotted synthetic bone nut
- Gloss urethane finish
General
Hardware
Tuner Mounting Config
Vintage-Style 4-Screw
Measurements
Fret Size
Vintage-Style
Fret Wire Dimensions
0.084" (H) x 0.039" (W)
Headstock Thickness
.540” (13.71 mm)
Peg Hole Diameter
.625” (15.87 mm)
Scale Length
34" (86.36 cm)
Miscellaneous
Commodity Code
9209.94.8000
Style
Vintage-Style
Neck
Fingerboard Material
Pau Ferro
Fingerboard Radius
7.25" (184.1 mm)
Neck Finish
Gloss Urethane
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
'70s "C"
Neck Thickness
2nd Fret - .820" (20.82 mm), 12th Fret - .920" (23.36 mm)
Number of Frets
20
Nut Material
Synthetic Bone
Nut Width
1.5" (38.1 mm)
Position Inlays
Pearloid Block
String Nut
Synthetic Bone
Truss Rod
Bullet Style
Truss Rod Nut
Bullet Style
