Color
Natural
Orientation
Right-Hand
Product Name

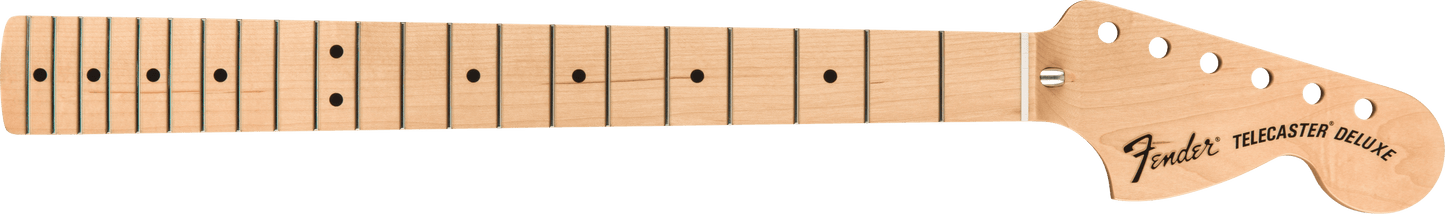

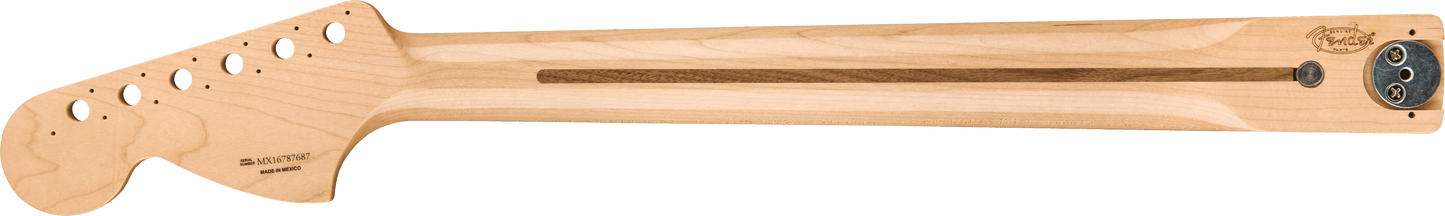

Classic Series '72 Telecaster® Deluxe Neck, 21 Vintage-Style Frets, Maple Fingerboard, 3-Bolt Mount
Series
Necks
Classic Series '72 Tele® Deluxe Neck, 3-Bolt Mount, 21 Medium Jumbo Frets - Maple Fingerboard
Regular price
$679.00
Regular price
$679.00
$679.00
Sale price
Unit price
per
inc GST
Classic Series '72 Tele® Deluxe Neck, 3-Bolt Mount, 21 Medium Jumbo Frets - Maple Fingerboard
Classic Series '72 Tele® Deluxe Neck, 3-Bolt Mount, 21 Medium Jumbo Frets - Maple Fingerboard
Regular price
$679.00
Regular price
$679.00
$679.00
Sale price
Unit price
per
inc GST
Couldn't load pickup availability
Details
Summary
Overview
Crafted at our Ensenada, Mexico manufacturing facility, this genuine vintage-style 3-bolt Fender Telecaster® Deluxe guitar neck features a comfortable vintage "C"-shaped profile and 12"-radius maple fingerboard with 21 medium jumbo frets.
Although this neck features a 3-bolt design typical of '70s Teles, only the bottom two neck mounting pilot holes are available, giving you the flexibility to use this neck with many different guitar bodies.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- Maple fingerboard with 12" radius
- Vintage "C"-shaped neck profile
- 21 medium jumbo frets
- Pre-slotted synthetic bone nut
- Gloss urethane finish
- Bullet-style truss rod adjustment
General
Hardware
Tuner Mounting Config
Vintage-Style 2-Screw
Measurements
Fret Size
Medium Jumbo
Fret Wire Dimensions
0.103" (H) x 0.046" (W)
Headstock Thickness
.540" (13.71 mm)
Peg Hole Diameter
.397" (10.08 mm)
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9209.94.8000
Neck
Fingerboard Material
Maple
Fingerboard Radius
12" (305 mm)
Neck Finish
Gloss Urethane
Neck Material
Maple with Walnut Stripe
Neck Mounting
3 or 4-Bolt Configurable (Only two pilot holes drilled)
Neck Shape
"C" Shape
Neck Thickness
1st Fret - .820" (20.82 mm), 12th Fret - .900" (22.86 mm)
Number of Frets
21
Nut Material
Synthetic Bone
Nut Width
1.650" (42 mm)
Position Inlays
Black Dot
String Nut
Synthetic Bone
Truss Rod
Bullet Style
Truss Rod Nut
Bullet Style
