Color
Natural
Orientation
Right-Hand
Product Name
Classic Series '72 Telecaster® Thinline "U" Neck, 3-Bolt Mount, 21 Vintage-Style Frets, Maple Fingerboard
Series
Necks
Classic Series '72 Telecaster® "U" Neck, 3-Bolt Mount, 21 Vintage-Style Frets - Maple Fingerboard
Regular price
$679.00
Regular price
$679.00
$679.00
Sale price
Unit price
per
inc GST
Classic Series '72 Telecaster® "U" Neck, 3-Bolt Mount, 21 Vintage-Style Frets - Maple Fingerboard
Classic Series '72 Telecaster® "U" Neck, 3-Bolt Mount, 21 Vintage-Style Frets - Maple Fingerboard
Regular price
$679.00
Regular price
$679.00
$679.00
Sale price
Unit price
per
inc GST
Couldn't load pickup availability
Details
Summary
Overview
70s-style Genuine Replacement Neck

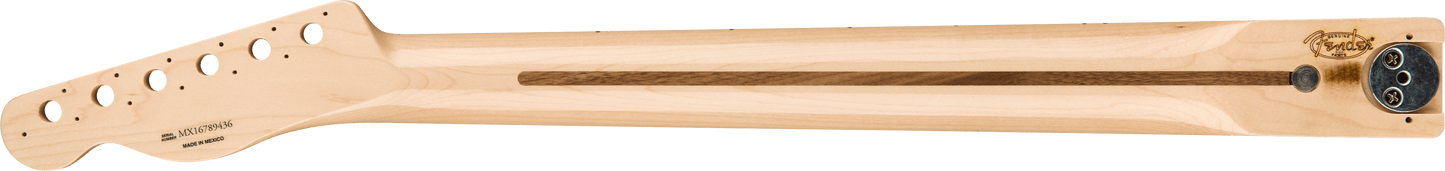

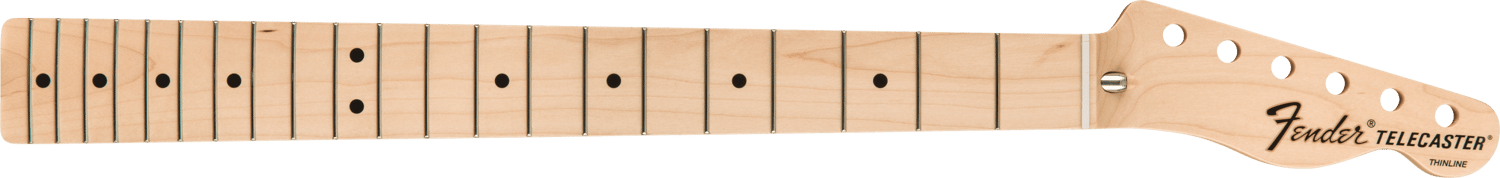

Crafted at our Ensenada, Mexico manufacturing facility, this vintage-style 3-bolt Telecaster Thinline guitar neck features a comfortable "U"-shaped profile and 7.25"-radius maple fingerboard with 21 vintage-style frets. Although this neck features a 3-bolt design typical of '70s Teles, only the bottom two neck mounting pilot holes are available, giving you the flexibility to use this neck with many different guitar bodies.
The synthetic bone nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing, and a gloss urethane finish offers smooth playability.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- "U"-shaped neck profile
- Maple fingerboard with 7.25" radius
- 21 vintage-style frets
- Pre-slotted synthetic bone nut
- Gloss urethane finish
- Bullet-style truss rod adjustment
General
Hardware
Tuner Mounting Config
Vintage-Style 2-Screw
Measurements
Fret Size
Vintage-Style
Fret Wire Dimensions
0.084" (H) x 0.039" (W)
Headstock Thickness
.540" (13.71 mm)
Peg Hole Diameter
.397" (10.08 mm)
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9209.94.8000
Style
Vintage-Style
Neck
Fingerboard Material
Maple
Fingerboard Radius
7.25" (184.1 mm)
Neck Finish
Gloss Urethane
Neck Material
Maple with Walnut Stripe
Neck Mounting
3 or 4-Bolt Configurable (Only two pilot holes drilled)
Neck Shape
Vintage "U"
Neck Thickness
1st Fret - .850" (21.59 mm), 12th Fret - .900" (22.86 mm)
Number of Frets
21
Nut Material
Synthetic Bone
Nut Width
1.650" (42 mm)
Position Inlays
Black Dot
String Nut
Synthetic Bone
Truss Rod
Bullet Style
Truss Rod Nut
Bullet Style
