Color
Natural
Orientation
Right-Hand
Product Name
Fender® 1951 Telecaster® Neck, Fat "U" Shape, Narrow Tall Frets, 9.5", Maple
Series
Necks
Fender® 1951 Telecaster® Neck
Regular price
$649.00
Regular price
$649.00
$649.00
Sale price
Unit price
per
inc GST
Fender® 1951 Telecaster® Neck
Fender® 1951 Telecaster® Neck
Model #:
0990802921
Regular price
$649.00
Regular price
$649.00
$649.00
Sale price
Unit price
per
inc GST
- Maple fingerboard with 9.5" radius
- 1951 "U"-shaped neck profile
- 21 6105 frets
- Synthetic bone nut
- Gloss urethane finish
- Vintage-style truss rod adjustment
Couldn't load pickup availability
Details
Summary
Overview

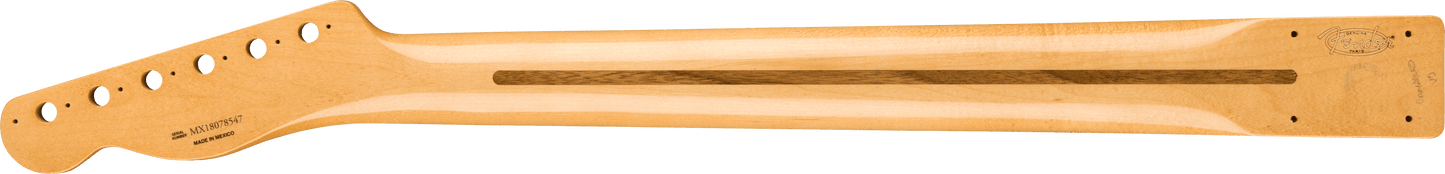

Crafted at our Ensenada, Mexico manufacturing facility, this genuine vintage-style Fender Telecaster® guitar neck features a substantial 1951 "U"-shaped profile and 9.5"-radius maple fingerboard with 21 6105 frets.
The synthetic bone nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing and a gloss urethane finish offers smooth playability. This replacement neck is the perfect way to give your Tele a classic 1951-style playing feel.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- Maple fingerboard with 9.5" radius
- 1951 "U"-shaped neck profile
- 21 6105 frets
- Synthetic bone nut
- Gloss urethane finish
- Vintage-style truss rod adjustment
Specs
General
Hardware
Tuner Mounting Config
Vintage-Style 2-Screw
Measurements
Fret Size
Narrow Tall (6105)
Fret Wire Dimensions
0.094" (H) x 0.054" (W)
Headstock Thickness
1st Fret - .950” (24.13 mm), 12th Fret - 1.0” (25.40 mm)
Peg Hole Diameter
.358" (9.09 mm)
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9209.94.8000
Style
Vintage
Neck
Fingerboard Material
Maple
Fingerboard Radius
9.5" (241 mm)
Neck Finish
Gloss Urethane
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
1951 "U"
Neck Thickness
.540” (13.71 mm)
Number of Frets
21
Nut Material
Synthetic Bone
Nut Width
1.6875" (42.86 mm)
Position Inlays
Black Dot
String Nut
Synthetic Bone
Truss Rod
Vintage-Style Heel Adjust
Truss Rod Nut
Vintage-Style Slotted
