Footswitch
2-Button 3-Function (Channel Select, Drive/More Drive), P/N: 0994062000 (Included)
Included Accessories
Includes two-button footswitch and fitted cover
Hot Rod Deluxe™ IV
Regular price
$1,799.00
Regular price
$1,799.00
$1,799.00
Sale price
Unit price
per
inc GST

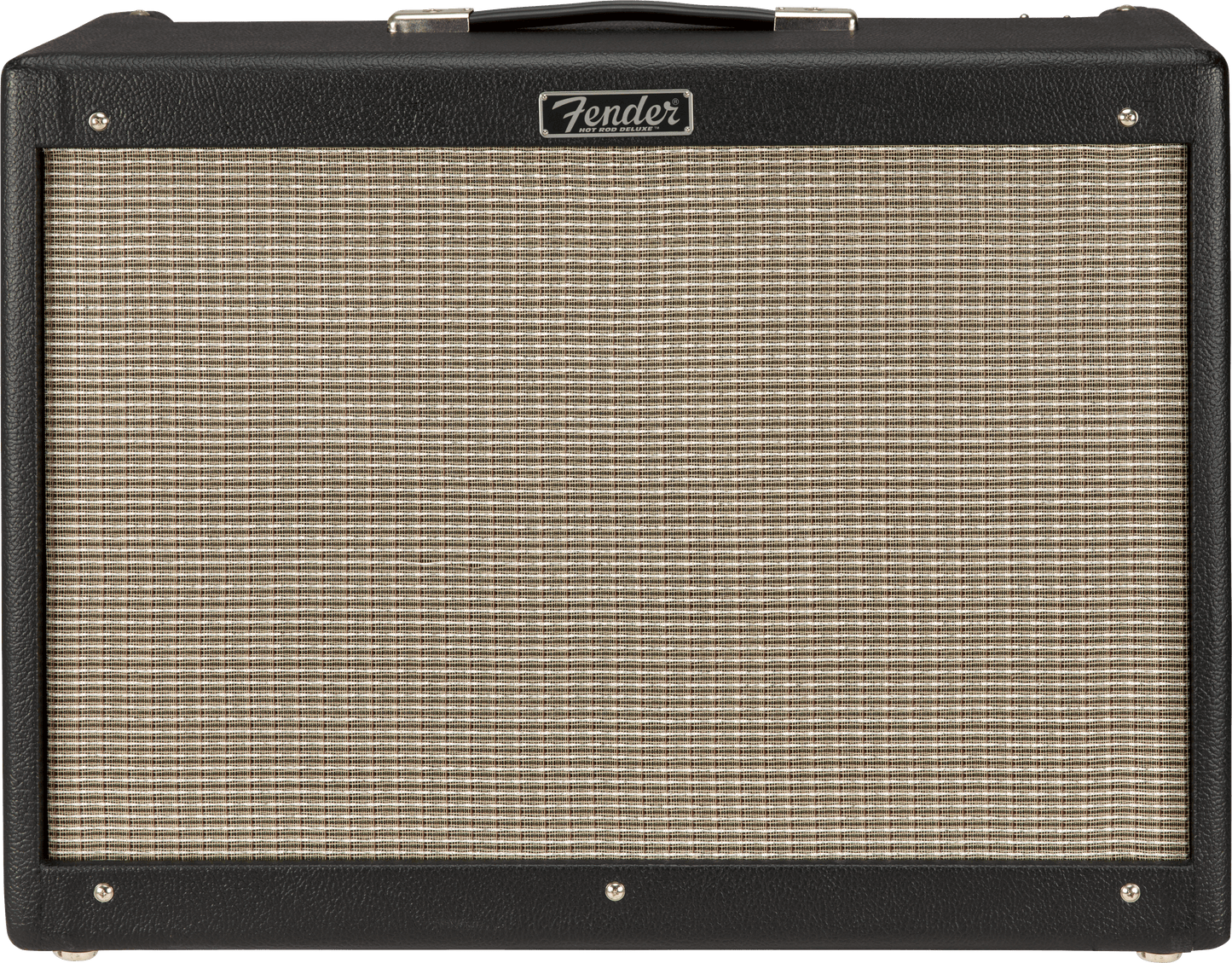

Hot Rod Deluxe™ IV
Hot Rod Deluxe™ IV
Regular price
$1,799.00
Regular price
$1,799.00
$1,799.00
Sale price
Unit price
per
inc GST
Couldn't load pickup availability
Details
Summary
Overview
An updated version of the legendary amplifier that's been the heart of many guitarists' rigs, the Hot Rod Deluxe IV features modified preamp circuitry, smoother-sounding spring reverb and updated aesthetics that any player is sure to appreciate. A supercharged amp decked out with player-requested features, this scorching 40-watt 1x12" combo is ideal for guitarists who need hot-rodded power with performance to spare.
Overview
Features
- 40 watts; Normal, Drive, and More Drive channels
- Celestion 12" A-Type speaker
- Modified preamp circuitry for increased overdriven note definition
- Spring reverb modified for improved smoothness
- Lightweight pine cabinet
- Includes 2-button footswitch and cover
Accessories
Electronics
Channels
Three - Selectable (Normal, Drive and More Drive)
Connection Type
1/4"
Control Panel
Presence, Reverb, Master Volume, Middle, Bass, Treble, Drive Select Switch, Drive Volume, Bright Switch
Controls
Presence, Reverb, Master Volume, Middle, Bass, Treble, Drive Select Switch, Drive Volume, Bright Switch
Effects
Reverb
Effects Loop
1/4" - (Preamp Out, Power Amp In)
Inputs
Two - (1/4", Input 2 operates at -6dB)
Wattage
40 Watts
General
Amplifier Type
Tube
Color
Black
Product Name
Hot Rod Deluxe™ IV, Black, 240V AUS
Series
Hot Rod
Hardware
Amplifier Covering
Black Textured Vinyl
Amplifier Jewel
Red Jewel
Cabinet Material
Lightweight Pine
Control Knobs
Chicken-Head Style Pointer - Ivory
Front Panel
Black
Grille Cloth
Lightly-Aged Silver
Handle
Molded Plastic Strap with Nickel-Plated Caps
Speaker Jack
Two 1/4" Parallel (Internal and External)
Measurements
Power Tubes
2 x 6L6
Product Depth
10.4375" (265 mm)
Product Height
18.75" (47.6 cm)
Product Width
23.5" (59.7 cm)
Miscellaneous
Commodity Code
8518.40.2000
Power Cable
Non-IEC
Speakers
Speakers
One - 12" Celestion® A-Type
Total Impedance
8 ohms
Tubes
Power Tubes
2 x 6L6
Preamp Tubes
3 x 12AX7
Rectifier
Solid State
Highlights
Modified Preamp Circuitry
The modified preamp circuitry offers greater tonal definition and clarity, even when pushing the amp into overdrive, so your tone remains articulate no matter how hard you push it.
Modified Spring Reverb
This amp’s modified spring reverb offers the same luscious ambient sound you know and love, but with improved smoothness to dial in your sound at any volume.
Celestion Speaker
Hailing from the U.K., Celestion speakers are acclaimed worldwide for their distinctly rock ‘n’ roll flavor, with a more modern sound and utterly classic roar when pushed.
Lightly Aged Grille Cloth
The Hot Rod Deluxe IV features the classic Fender look of sparkling silver grille cloth, lightly aged to give it even more mojo.
Lightweight Pine Cabinet
Lightweight, yet strong, pine was used to craft Fender amps in the 1950s and ’60s, making for more resonant and more “musical” speaker cabinets.
Ivory Pointer Knobs
In a nod to our illustrious past, we added ivory pointer knobs, an original-era design element.
Downloads
- Warranty
- Hot Rod Deluxe™ IV Owner's Manual
- Safety Document (North America, Europe, Japan, China)
- Owner's Manual - Dutch
- Owner's Manual - Finnish
- Owner's Manual - Croatian
- Owner's Manual - Greek
- Owner's Manual - Estonian
- Owner's Manual - Bulgarian
- Owner's Manual - Lithuanian
- Owner's Manual - Latvian
- Owner's Manual - Romanian
- Owner's Manual - Swedish
- RoHS (China) Table - 2231208000
