Color
Natural
Orientation
Right-Hand
Product Name
Player Series Stratocaster® Reverse Headstock Neck, 22 Medium Jumbo Frets, Maple, 9.5", Modern "C"
Series
Necks
Player Series Stratocaster® Reverse Headstock Neck, 22 Medium Jumbo Frets, 9.5", Modern "C"
Regular price
$679.00
Regular price
$679.00
$679.00
Sale price
Unit price
per
inc GST
Player Series Stratocaster® Reverse Headstock Neck, 22 Medium Jumbo Frets, 9.5", Modern "C"
Player Series Stratocaster® Reverse Headstock Neck, 22 Medium Jumbo Frets, 9.5", Modern "C"
Model #:
0994562921
Regular price
$679.00
Regular price
$679.00
$679.00
Sale price
Unit price
per
inc GST
- Maple neck with walnut "skunk" stripe
- Maple or pau ferro fingerboard with 9.5" radius
- 22 medium jumbo frets
- Pre-slotted synthetic bone nut
- Standard truss rod
- Six two-guide-pin tuning machine holes
Couldn't load pickup availability
Details
Summary
Overview

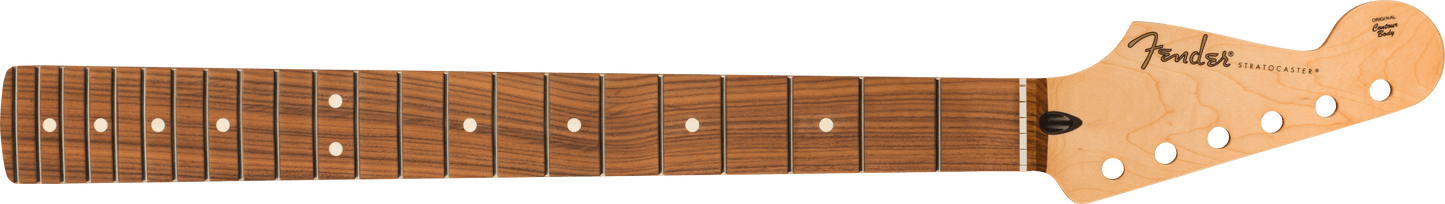

Turn it upside down with a Player Series neck with a Reverse Headstock. Crafted at our Ensenada, Mexico, manufacturing facility, this genuine Fender Player Series Stratocaster® guitar neck features a comfortable "modern C" profile and 9.5"-radius maple or pau ferro fingerboard with 22 medium jumbo frets and a reverse headstock.
The nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing, and a satin finish on the back offers smooth playability. For true Fender authenticity, it's also serialized and stamped, with genuine "Original Contour Body" headstock decal.
This replacement neck is for a Fender® or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- Maple neck with walnut "skunk" stripe
- Maple or pau ferro fingerboard with 9.5" radius
- 22 medium jumbo frets
- Pre-slotted synthetic bone nut
- Standard truss rod
- Six two-guide-pin tuning machine holes
Specs
General
Hardware
Tuner Mounting Config
Dual Guide Pin
Measurements
Fret Size
Medium Jumbo
Fret Wire Dimensions
0.103" (H) x 0.046" (W)
Headstock Thickness
.540” (13.71 mm)
Peg Hole Diameter
.397" (10.08 mm)
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9209.94.8000
Neck
Fingerboard Material
Maple
Fingerboard Radius
9.5" (241 mm)
Neck Finish
Satin Urethane Finish on Back, Gloss Urethane Finish on Front
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
Modern "C"
Neck Thickness
1st Fret - .820” (20.82 mm), 12th Fret - .870” (22.09 mm)
Number of Frets
22
Nut Material
Synthetic Bone
Nut Width
1.650" (42 mm)
Position Inlays
Black Dot
Side Dots
Black
String Nut
Synthetic Bone
Truss Rod
Single Action, Head Adjust
Truss Rod Nut
3/16" Hex Adjustment
Specs
General
Color
Natural
Orientation
Right-Hand
Product Name
Player Series Stratocaster® Reverse Headstock Neck, 22 Medium Jumbo Frets, Pau Ferro, 9.5", Modern "C"
Series
Necks
Hardware
Tuner Mounting Config
Dual Guide Pin
Measurements
Fret Size
Medium Jumbo
Fret Wire Dimensions
0.103" (H) x 0.046" (W)
Headstock Thickness
.540” (13.71 mm)
Peg Hole Diameter
.397" (10.08 mm)
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9209.94.8000
Neck
Fingerboard Material
Pau Ferro
Fingerboard Radius
9.5" (241 mm)
Neck Finish
Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
Modern "C"
Neck Thickness
1st Fret - .820” (20.82 mm), 12th Fret - .870” (22.09 mm)
Number of Frets
22
Nut Material
Synthetic Bone
Nut Width
1.650" (42 mm)
Position Inlays
White Dot
Side Dots
White
String Nut
Synthetic Bone
Truss Rod
Single Action, Head Adjust
Truss Rod Nut
3/16" Hex Adjustment
