Color
Natural
Orientation
Left-Hand
Product Name

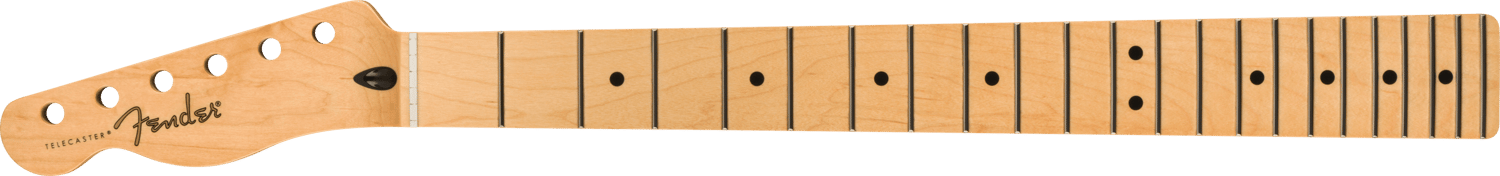

Player Series Telecaster® LH Neck, 22 Medium Jumbo Frets, Maple, 9.5", Modern "C"
Series
Necks
Player Series Telecaster® Left-Handed Neck, 22 Medium Jumbo Frets, 9.5" Radius
Regular price
$679.00
Regular price
$679.00
$679.00
Sale price
Unit price
per
inc GST
Player Series Telecaster® Left-Handed Neck, 22 Medium Jumbo Frets, 9.5" Radius
Player Series Telecaster® Left-Handed Neck, 22 Medium Jumbo Frets, 9.5" Radius
Regular price
$679.00
Regular price
$679.00
$679.00
Sale price
Unit price
per
inc GST
Couldn't load pickup availability
Details
Summary
Overview
Crafted at our Ensenada, Mexico, manufacturing facility, this genuine Fender Player Series Telecaster® left-handed guitar neck features a comfortable "modern C" profile and 9.5"-radius maple or pau ferro fingerboard with 22 medium jumbo frets.
The nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing, and a satin finish on the back offers smooth playability. For true Fender authenticity, it's also serialized and stamped, with a genuine spaghetti logo headstock decal.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- Maple neck with walnut "skunk" stripe
- Maple or pau ferro fingerboard with 9.5" radius
- 22 medium jumbo frets
- Pre-slotted synthetic bone nut
- Standard truss rod
- Six two-guide-pin tuning machine holes
General
Hardware
Tuner Mounting Config
Dual Guide Pin
Measurements
Fret Size
Medium Jumbo
Fret Wire Dimensions
0.103" (H) x 0.046" (W)
Headstock Thickness
.540” (13.71 mm)
Peg Hole Diameter
.397" (10.08 mm)
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9209.94.8000
Neck
Fingerboard Material
Maple
Fingerboard Radius
9.5" (241 mm)
Neck Finish
Satin Urethane Finish on Back, Gloss Urethane Finish on Front
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
Modern "C"
Neck Thickness
1st Fret - .820” (20.82 mm), 12th Fret - .870” (22.09 mm)
Number of Frets
22
Nut Material
Synthetic Bone
Nut Width
1.650" (42 mm)
Position Inlays
Black Dot
Side Dots
Black
String Nut
Synthetic Bone
Truss Rod
Single Action, Head Adjust
Truss Rod Nut
3/16" Hex Adjustment
General
Color
Natural
Orientation
Left-Hand
Product Name

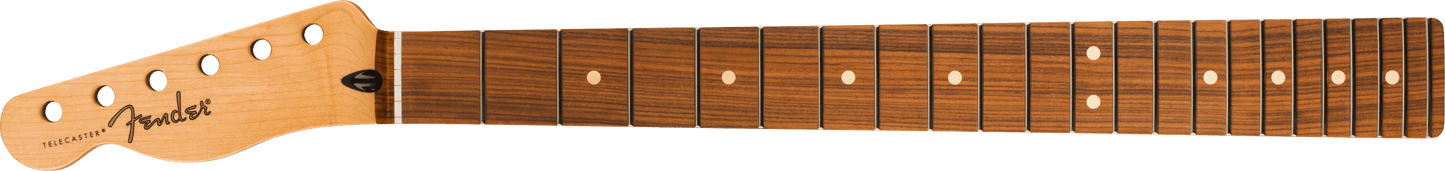

Player Series Telecaster® LH Neck, 22 Medium Jumbo Frets, Pau Ferro, 9.5", Modern "C"
Series
Necks
Hardware
Tuner Mounting Config
Dual Guide Pin
Measurements
Fret Size
Medium Jumbo
Fret Wire Dimensions
0.103" (H) x 0.046" (W)
Headstock Thickness
.540” (13.71 mm)
Peg Hole Diameter
.397" (10.08 mm)
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9209.94.8000
Neck
Fingerboard Material
Pau Ferro
Fingerboard Radius
9.5" (241 mm)
Neck Finish
Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
Modern "C"
Neck Thickness
1st Fret - .820” (20.82 mm), 12th Fret - .870” (22.09 mm)
Number of Frets
22
Nut Material
Synthetic Bone
Nut Width
1.650" (42 mm)
Position Inlays
White Dot
Side Dots
White
String Nut
Synthetic Bone
Truss Rod
Single Action, Head Adjust
Truss Rod Nut
3/16" Hex Adjustment
