Color
Natural
Orientation
Right-Hand
Product Name

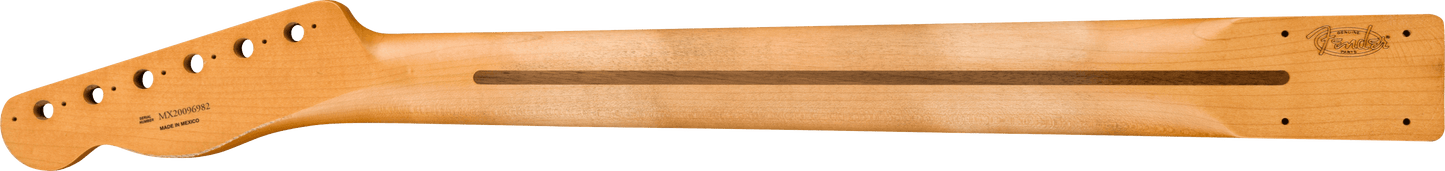

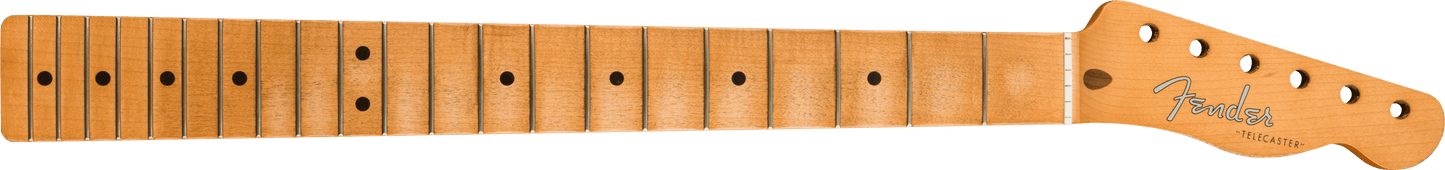

Road Worn® '50's Telecaster® Neck, 21 Vintage Tall Frets, Maple, "U" Shape
Series
Road Worn
Road Worn® '50s Telecaster® Neck, 21 Vintage Tall Frets, Maple, U Shape
Regular price
$949.00
Regular price
$949.00
$949.00
Sale price
Unit price
per
inc GST
Road Worn® '50s Telecaster® Neck, 21 Vintage Tall Frets, Maple, U Shape
Road Worn® '50s Telecaster® Neck, 21 Vintage Tall Frets, Maple, U Shape
Regular price
$949.00
Regular price
$949.00
$949.00
Sale price
Unit price
per
inc GST
Couldn't load pickup availability
Details
Summary
Overview
Nitrocellulose lacquer is a vintage-accurate finish that wears gradually over time, creating a pleasantly worn-in appearance with use. Our Road Worn® Nitro finish is hand-distressed to faithfully recreate the look and feel of a well-loved vintage instrument.
This genuine Fender Telecaster neck is crafted at our Ensenada, Mexico manufacturing facility. Featuring an early '50's "U" neck profile and 7.25"-radius maple fingerboard with 21 vintage tall frets, for the comfortable playing feel of a vintage instrument. The synthetic bone nut is pre-slotted with "pilot" grooves for accurate spacing when filing the final string slots. The perfect way to give your Tele® authentic Fender feel, this replacement neck even sports our famous "spaghetti" logo on the headstock.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- Road Worn® Nitro finish maple neck
- Fat early '50's "U" profile; 7.25"-radius maple fingerboard
- 21 vintage tall frets; pre-slotted synthetic bone nut
- Vintage-style truss rod adjustment
General
Hardware
Tuner Mounting Config
Vintage-Style 2-Screw
Measurements
Fret Size
Vintage Tall
Fret Wire Dimensions
0.083" (H) x 0.045" (W)
Headstock Thickness
.540" (13.71 mm)
Peg Hole Diameter
.358” (9.09 mm)
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9209.94.8000
Style
Vintage
Neck
Fingerboard Material
Maple
Fingerboard Radius
7.25" (184.1 mm)
Neck Finish
Road Worn® Nitrocellulose Lacquer
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
Early '50s "U"
Neck Thickness
1st Fret - .900” (22.86 mm), 12th Fret - .990” (25.15 mm)
Number of Frets
21
Nut Material
Synthetic Bone
Nut Width
1.650" (42 mm)
Position Inlays
Black Dot
Side Dots
Black
String Nut
Synthetic Bone
Truss Rod
Vintage-Style Heel Adjust
Truss Rod Nut
Vintage-Style Slotted
