Color
Natural
Orientation
Right-Hand
Product Name
Roasted Maple Precision Bass Neck, 20 Medium Jumbo Frets, 9.5", Maple, C Shape
Series
Necks

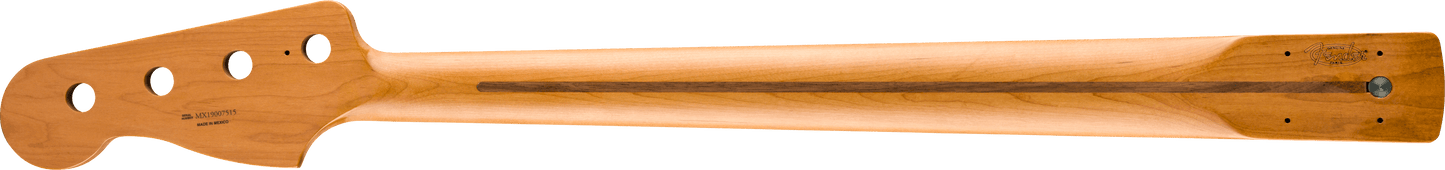

Roasted Maple Precision Bass® Neck, 20 Medium Jumbo Frets, 9.5", Maple, C Shape
Regular price
$899.00
Regular price
$899.00
$899.00
Sale price
Unit price
per
inc GST
Roasted Maple Precision Bass® Neck, 20 Medium Jumbo Frets, 9.5", Maple, C Shape
Roasted Maple Precision Bass® Neck, 20 Medium Jumbo Frets, 9.5", Maple, C Shape
Model #:
0990802920
Regular price
$899.00
Regular price
$899.00
$899.00
Sale price
Unit price
per
inc GST
- Roasted maple neck
- "Modern C"-shaped profile; 9.5"-radius maple fingerboard
- 20 medium-jumbo frets; synthetic bone nut
- Gloss urethane finish on fingerboard and headstock face; satin finish on back of neck
- Modern-style truss rod adjustment
Couldn't load pickup availability
Details
Summary
Overview
There's no denying the allure of a roasted maple neck. Resistant to humidity shifts and featuring a gorgeous, dark look, they have more sustain and add a unique note to the instrument's voice.
This genuine Fender Precision Bass neck is crafted at our Ensenada, Mexico manufacturing facility. Featuring a comfortable "Modern C"-shaped profile and 9.5"-radius maple fingerboard with 20 medium-jumbo frets, this neck was designed for pure playability. The synthetic bone nut is pre-slotted with "pilot" grooves for accurate spacing when filing the final string slots. The perfect way to give your P Bass® authentic Fender feel, this replacement neck even sports our famous "spaghetti" logo on the headstock.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- Roasted maple neck
- "Modern C"-shaped profile; 9.5"-radius maple fingerboard
- 20 medium-jumbo frets; synthetic bone nut
- Gloss urethane finish on fingerboard and headstock face; satin finish on back of neck
- Modern-style truss rod adjustment
Specs
General
Measurements
Fret Size
Medium Jumbo
Fret Wire Dimensions
0.103" (H) x 0.046" (W)
Headstock Thickness
.540” (13.71 mm)
Peg Hole Diameter
.687” (17.44 mm)
Scale Length
34" (86.36 cm)
Miscellaneous
Commodity Code
9209.94.8000
Style
Modern
Neck
Fingerboard Material
Roasted Maple
Fingerboard Radius
9.5" (241 mm)
Neck Finish
Satin Urethane Finish on Back, Gloss Urethane Finish on Front
Neck Material
Roasted Maple
Neck Mounting
4-Bolt
Neck Shape
Modern "C"
Neck Thickness
1st Fret - .820” (20.82 mm), 12th Fret - .870” (22.09 mm)
Number of Frets
20
Nut Material
Synthetic Bone
Nut Width
1.625" (41.3 mm)
Position Inlays
Black Dot
String Nut
Synthetic Bone
Truss Rod
Single Action, Head Adjust
Truss Rod Nut
3/16" Hex Adjustment
