Color
Natural
Orientation
Right-Hand
Product Name

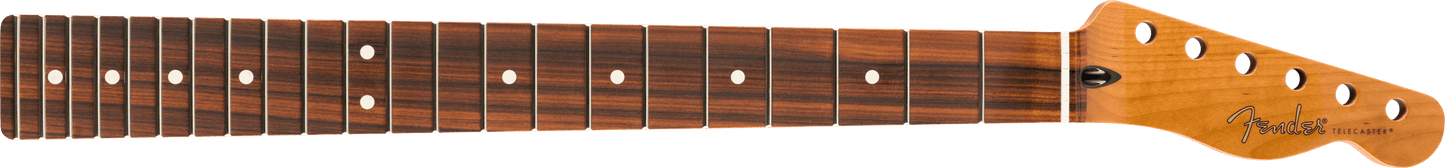

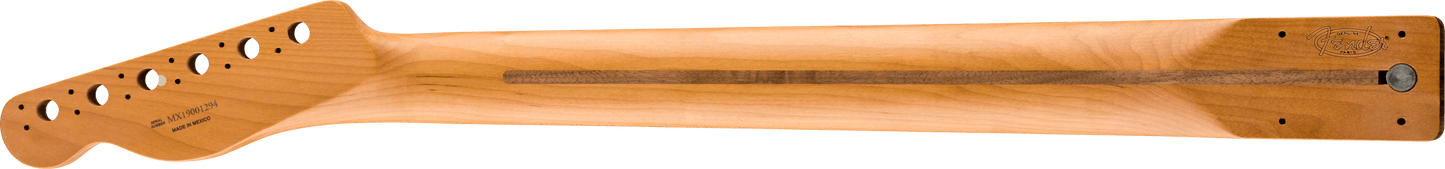

Roasted Maple Telecaster® Neck, 22 Jumbo Frets, 12", Pau Ferro, Flat Oval Shape
Series
Necks
Roasted Maple Telecaster® Neck, 22 Jumbo Frets, 12", Pau Ferro, Flat Oval Shape
Regular price
$729.00
Regular price
$729.00
$729.00
Sale price
Unit price
per
inc GST
Roasted Maple Telecaster® Neck, 22 Jumbo Frets, 12", Pau Ferro, Flat Oval Shape
Roasted Maple Telecaster® Neck, 22 Jumbo Frets, 12", Pau Ferro, Flat Oval Shape
Regular price
$729.00
Regular price
$729.00
$729.00
Sale price
Unit price
per
inc GST
Couldn't load pickup availability
Details
Summary
Overview
There's no denying the allure of a roasted maple neck. Resistant to humidity shifts and featuring a gorgeous, dark look, they have more sustain and add a unique note to the instrument's voice.
This genuine Fender Telecaster neck is crafted at our Ensenada, Mexico manufacturing facility. Featuring a comfortable "Flat Oval"-shaped profile and 12"-radius pau ferro fingerboard with 22 jumbo frets, this neck was designed for pure speed. The synthetic bone nut is pre-slotted with "pilot" grooves for accurate spacing when filing the final string slots. The perfect way to give your Tele® authentic Fender feel, this replacement neck even sports our famous "spaghetti" logo on the headstock.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- Roasted maple neck
- "Flat Oval"-shaped profile; 12"-radius pau ferro fingerboard
- 22 jumbo frets; synthetic bone nut
- Gloss urethane finish on headstock face; satin finish on back of neck
- Modern-style truss rod adjustment
General
Hardware
Tuner Mounting Config
Dual Guide Pin
Measurements
Fret Size
Jumbo
Fret Wire Dimensions
0.110" (H) x 0.055" (W)
Headstock Thickness
.540” (13.71 mm)
Peg Hole Diameter
.397" (10.08 mm)
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9209.94.8000
Style
Modern
Neck
Fingerboard Material
Pau Ferro
Fingerboard Radius
12" (305 mm)
Neck Finish
Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
Neck Material
Roasted Maple
Neck Mounting
4-Bolt
Neck Shape
Flat Oval
Neck Thickness
1st Fret - .752” (19.10 mm), 12th Fret - .830” (21.08 mm)
Number of Frets
22
Nut Material
Synthetic Bone
Nut Width
1.6875" (42.86 mm)
Position Inlays
White Dot
Side Dots
White
String Nut
Synthetic Bone
Truss Rod
Single Action, Head Adjust
Truss Rod Nut
3/16" Hex Adjustment
