Details
Summary
Overview

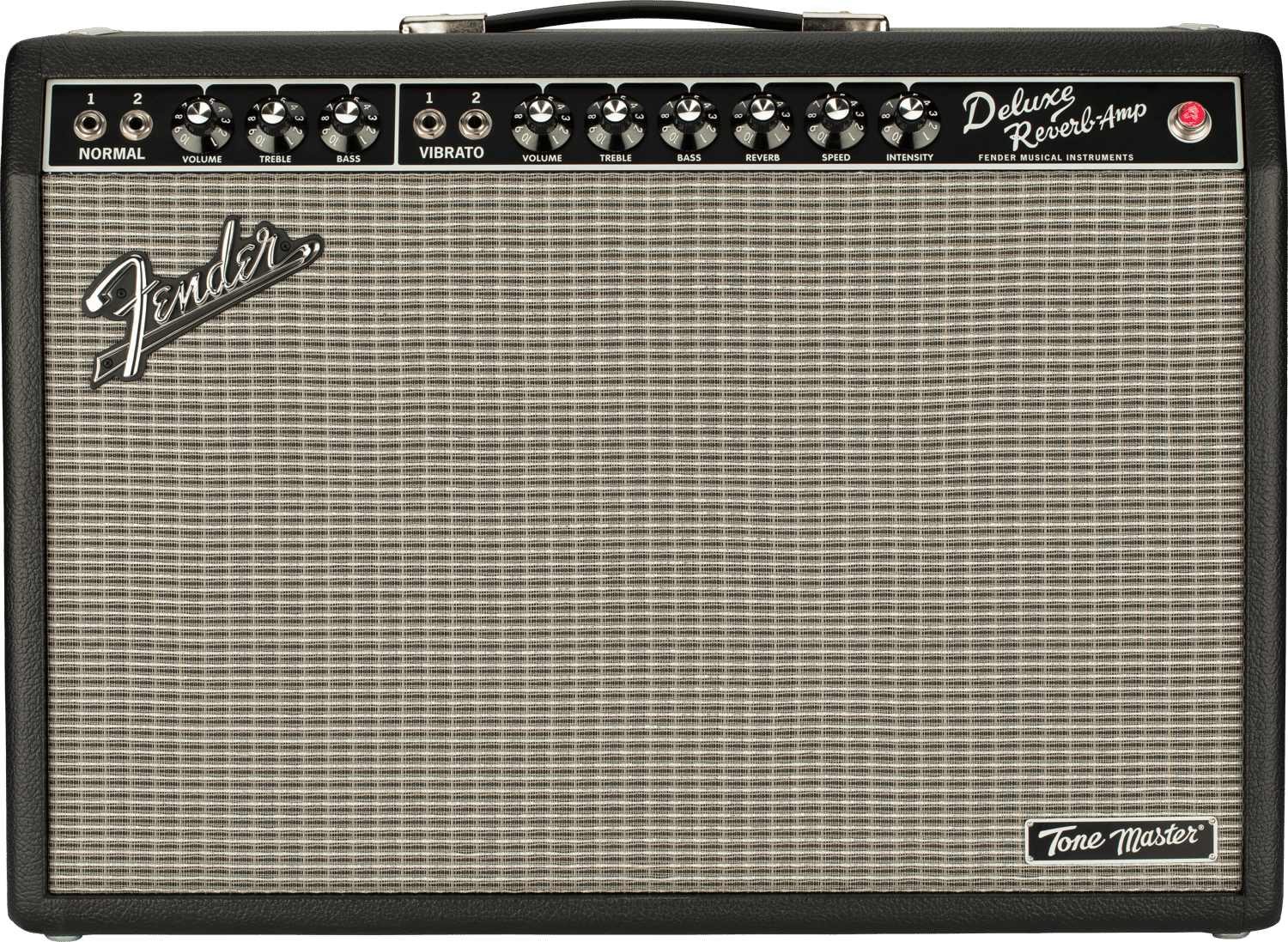

The Tone Master Deluxe Reverb amplifier uses massive digital processing power to achieve a single remarkable feat: faithfully modeling the circuitry and 22-watt power output of an original Deluxe Reverb tube amp. Using a high-performance class D power amp to achieve the headroom and dynamics of the tube amp, the result is pure Deluxe Reverb tone that’s virtually indistinguishable from the original.
This remarkable Fender technology is paired with a Jensen® N-12K neodymium speaker, as well as convolution spring reverb and tremolo. Other features include an output power selector for full power and five attenuated settings, impulse response (IR) XLR line output for detailed cabinet simulations, mute switch, and lightweight pine cabinet.
Update your Tone Master amp to v2 firmware to add compatibility with Tone Master IR Manager App. Customize the line output with 45 factory impulse responses with 9 microphone options. Load 3rd party IRs and access additional amplifier features.
Download the IR Manager App and amplifier firmware update here
Overview
Features
- Jensen N-12K neodymium speaker
- Normal and Vibrato channels, each with two inputs
- Rear-panel output power selector for full power and five attenuated settings
- Balanced XLR line output with impulse response (IR) cabinet simulations, level control, and ground switch
- Lightweight, resonant pine cabinet
- Power jewel illuminates in different colors for normal operation, warmup, and mute/silent mode
- USB port for firmware upgrades
- Universal worldwide 100V - 240V operation
- Cover and two-button footswitch included
Accessories
Electronics
Channels
Two - (Normal and Vibrato)
Connection Type
1/4"
Connectivity
USB For Firmware Updates
Control Panel
Normal: Volume, Treble, Bass; Vibrato: Volume, Treble, Bass, Reverb, Speed, Intensity
Effects
Reverb, Tremolo
Inputs
Four - (1/4", Two Normal and Two Vibrato)
Line Out
One - (Balanced XLR with Ground Lift and Level Control)
VoltageRequirements
100-240 VAC, 50-60 Hz
Wattage
100W into 8Ω (Simulates 22W Tube Amp Performance)
General
Amplifier Type
Digital
Color
Black
Product Name
Tone Master® Deluxe Reverb®, 240V AUS
Series
Tone Master®
Hardware
Amplifier Covering
Black Textured Vinyl
Amplifier Jewel
Red (Power), Red/Amber (Warmup), Amber (Mute)
Cabinet Material
Lightweight Solid Pine
Control Knobs
Vintage-Style Skirted Black Plastic
Front Panel
Black
Grille Cloth
Silver
Handle
Molded Plastic Strap with Nickel-Plated Caps
Rear Control Panel
Power, Mute, Output Power Selector, Cabinet Simulator, Line Out Level, Ground Lift
Reverb Tank
DSP
Reverb Tank Type
DSP
Measurements
Product Depth
9.28" (23.6 cm)
Product Height
17" (43.2 cm)
Product Width
24.1" (61.2 cm)
Miscellaneous
Commodity Code
8518.40.2000
Speakers
Speakers
One - 12" Jensen® N-12K Neo
Total Impedance
8 ohms
Highlights
LEGENDARY DELUXE TONE
This amp features the most accurate emulation of our original Deluxe Reverb. It sounds like the original, without the extra weight and maintenance.
ONBOARD TREMOLO AND REVERB
Our powerful convolution-based technologies recreate the classic reverb and tremolo effects that made our amps famous and inspired new genres of music.

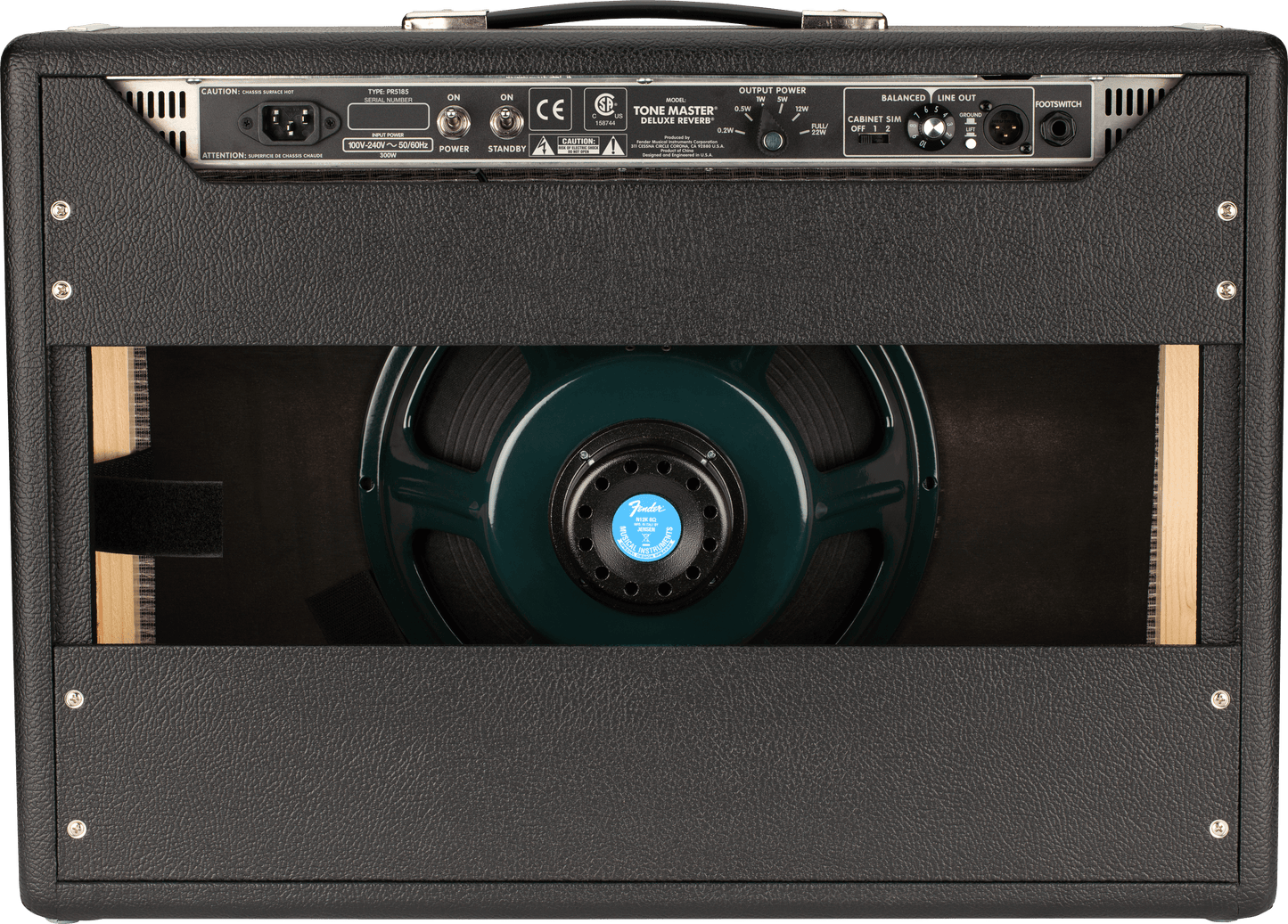

REAR PANEL FEATURES
This amp’s rear panel is packed with useful controls and connections: Line Output with Level control, ground lift switch and a three-way IR cabinet simulation switch to select various microphone options.
6-WAY POWER ATTENUATOR SWITCH
Enjoy full, natural tone at almost any volume—from a full 22W of Fender power down to bedroom- and apartment-friendly 0.2W.
CUSTOM JENSEN NEO SPEAKER
Designed to match the traditional C12K speaker, the Jensen N-12K Neo speaker is engineered using lightweight neodymium magnets.
SOLID PINE CABINET
Lighter than plywood, solid pine is a traditional Fender cabinet material from the ‘50s and ’60s, making for more resonant and more “musical” speaker cabinets.
Downloads
- Owner's Manual (US - English, Spanish, French, Portuguese)
- Owner's Manual (EU - English, Spanish, French, Portuguese, Italian, German, Czech, Slovak, Slovene)
- Owner's Manual (Chinese, Japanese)
- Limited Warranty
- Owner's Manual - Bulgarian
- Owner's Manual - Finnish
- Safety Document (North America, Europe, Japan, China)
- Owner's Manual - Lithuanian
- Owner's Manual - Romanian
- Owner's Manual - Latvian
- Owner's Manual - Estonian
- Owner's Manual - Dutch
- Owner's Manual - Greek
- Owner's Manual - Croatian
- Owner's Manual - Swedish
- Fender IR Manager MAC (June, 2025)
- Fender IR Manager WINDOWS (June, 2025)
- Tone Master IR Manager User Guide (June, 2025)
- Firmware Update Instructions Tone Master Deluxe Reverb
- RoHS (China) Table - 2274108000
- Tone Master Deluxe Reverb Firmware Update 2.0.42 (July, 2026)
